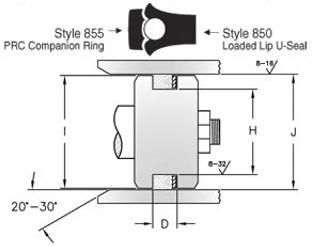

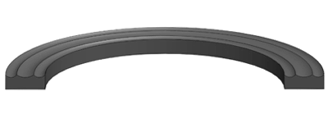

STYLE 855 PIP / PRC RINGS |
|
 |
Used as a companion to our 'B' lip configured, Style
850 U-Seal. Style 855 PIP / PRC rings convert a
uni-directional u-seal into a bi-directional seal.
NOTE: Height dimension is the increase in groove
width required.
|
Part # |
Cross Section |
A - Nom. I.D. |
B - Nom. O.D. |
C - Nom. Height |
H - Groove Diameter |
I - Piston Diameter |
J - Bore Diameter |
List |
|
PRC125-01.000 |
1/8 |
1 |
1-1/4 |
.065 |
1.000 |
1.249 |
1.250 |
$5.35 |
|
PRC125-01.250 |
1/8 |
1-1/4 |
1-1/2 |
.065 |
1.250 |
1.499 |
1.500 |
$5.80 |
|
PRC187-01.125 |
3/16 |
1-1/8 |
1-1/2 |
.11 |
1.125 |
1.499 |
1.500 |
$5.72 |
|
PRC187-01.375 |
3/16 |
1-3/8 |
1-3/4 |
.11 |
1.375 |
1.749 |
1.750 |
$6.31 |
|
PRC187-01.500 |
3/16 |
1-1/2 |
1-7/8 |
.11 |
1.500 |
1.874 |
1.875 |
$6.90 |
|
PRC187-01.625 |
3/16 |
1-5/8 |
2 |
.11 |
1.625 |
1.999 |
2.000 |
$6.71 |
|
PRC187-01.750 |
3/16 |
1-3/4 |
2-1/8 |
.11 |
1.750 |
2.124 |
2.125 |
$7.28 |
|
PRC187-02.375 |
3/16 |
2-3/8 |
2-3/4 |
.11 |
2.375 |
2.749 |
2.750 |
$9.78 |
|
PRC187-02.625 |
3/16 |
2-5/8 |
3 |
.11 |
2.625 |
2.999 |
3.000 |
$8.21 |
|
PRC187-03.000 |
3/16 |
3 |
3-3/8 |
.11 |
3.000 |
3.374 |
3.375 |
$9.62 |
|
PRC187-03.125 |
3/16 |
3-1/8 |
3-1/2 |
.11 |
3.125 |
3.499 |
3.500 |
$9.63 |
|
PRC187-03.625 |
3/16 |
3-5/8 |
4 |
.11 |
3.625 |
3.999 |
4.000 |
$11.86 |
|
PRC250-01.000 |
1/4 |
1 |
1-1/2 |
.137 |
1.000 |
1.499 |
1.500 |
$6.18 |
|
PRC250-01.500 |
1/4 |
1-1/2 |
2 |
.137 |
1.500 |
1.999 |
2.000 |
$7.45 |
|
PRC250-01.750 |
1/4 |
1-3/4 |
2-1/4 |
.137 |
1.750 |
2.249 |
2.250 |
$8.73 |
|
PRC250-02.000 |
1/4 |
2 |
2-1/2 |
.137 |
2.000 |
2.499 |
2.500 |
$9.12 |
|
PRC250-02.250 |
1/4 |
2-1/4 |
2-3/4 |
.137 |
2.250 |
2.749 |
2.750 |
$10.62 |
|
PRC250-02.500 |
1/4 |
2-1/2 |
3 |
.137 |
2.500 |
2.999 |
3.000 |
$10.97 |
|
PRC250-02.750 |
1/4 |
2-3/4 |
3-1/4 |
.137 |
2.750 |
3.249 |
3.250 |
$11.50 |
|
PRC250-03.000 |
1/4 |
3 |
3-1/2 |
.137 |
3.000 |
3.499 |
3.500 |
$12.78 |
|
PRC250-03.250 |
1/4 |
3-1/4 |
3-3/4 |
.137 |
3.250 |
3.749 |
3.750 |
$14.47 |
|
PRC250-03.500 |
1/4 |
3-1/2 |
4 |
.137 |
3.500 |
3.999 |
4.000 |
$14.71 |
|
PRC250-04.000 |
1/4 |
4 |
4-1/2 |
.137 |
4.000 |
4.499 |
4.500 |
$16.55 |
|
PRC250-04.250 |
1/4 |
4-1/4 |
4-3/4 |
.137 |
4.250 |
4.749 |
4.750 |
$18.54 |
|
PRC250-04.500 |
1/4 |
4-1/2 |
5 |
.137 |
4.500 |
4.999 |
5.000 |
$18.38 |
|
PRC250-05.000 |
1/4 |
5 |
5-1/2 |
.137 |
5.000 |
5.499 |
5.500 |
$20.22 |
|
PRC250-05.500 |
1/4 |
5-1/2 |
6 |
.137 |
5.500 |
5.999 |
6.000 |
$29.69 |
|
PRC250-06.000 |
1/4 |
6 |
6-1/2 |
.137 |
6.000 |
6.499 |
6.500 |
$30.09 |
|
PRC250-06.500 |
1/4 |
6-1/2 |
7 |
.137 |
6.500 |
6.999 |
7.000 |
$32.03 |
|
PRC312-02.375 |
5/16 |
2-3/8 |
3 |
.165 |
2.375 |
2.998 |
3.000 |
$12.58 |
|
PRC312-03.375 |
5/16 |
3-3/8 |
4 |
.165 |
3.375 |
3.998 |
4.000 |
$17.07 |
|
PRC312-04.375 |
5/16 |
4-3/8 |
5 |
.165 |
4.375 |
4.998 |
5.000 |
$22.01 |
|
PRC375-02.750 |
3/8 |
2-3/4 |
3-1/2 |
.207 |
2.750 |
3.498 |
3.500 |
$17.86 |
|
PRC375-03.250 |
3/8 |
3-1/4 |
4 |
.207 |
3.250 |
3.998 |
4.000 |
$22.65 |
|
PRC375-03.750 |
3/8 |
3-3/4 |
4-1/2 |
.207 |
3.750 |
4.498 |
4.500 |
$25.64 |
|
PRC375-04.250 |
3/8 |
4-1/4 |
5 |
.207 |
4.250 |
4.998 |
5.000 |
$28.96 |
|
PRC375-05.250 |
3/8 |
5-1/4 |
6 |
.207 |
5.250 |
5.998 |
6.000 |
$35.16 |
|
PRC375-05.500 |
3/8 |
5-1/2 |
6-1/4 |
.207 |
5.500 |
6.248 |
6.250 |
$36.44 |
|
PRC375-06.250 |
3/8 |
6-1/4 |
7 |
.207 |
6.250 |
6.998 |
7.000 |
$39.50 |
|
PRC375-07.250 |
3/8 |
7-1/4 |
8 |
.207 |
7.250 |
7.998 |
8.000 |
$47.18 |
|
PRC500-08.000 |
1/2 |
8 |
9 |
.275 |
8.000 |
8.998 |
9.000 |
$65.61 |
|
PRC500-09.000 |
1/2 |
9 |
10 |
.275 |
9.000 |
9.998 |
10.000 |
$73.09 |
